Product Description
Straight wrap conveyor belts(SW belt)
Advantages:
• Low elongation
• Good impact resistance
• Excellent ply adhesion
• Excellent anti-tearing performance
• High tensile strength
• Long service life
• Fatigue and wear resistance
• Excellent groove formation ability
• Good stability ever heated
• Good flexibility and troughability
• Full resistance to mildew, moisture and rotting
• High longitudinal and transverse breaking strength
Application areas
• Mining industry
• Chemical industry
• Iron and steel industry
• Wood and Paper industry
• Coal-fired power industry
• Recycling industry
• Sand and gravel industry
• Stone quarries
• Cement industry
• Grain and sugar industries
• Packing industry
• Power and heating plants
• Ports and transshipment operations
Impact resistance,high adhesive strength,Excellent flexibility,light weight,stable tension strength,high troughability,less thickness,low elongation and long length per roll.
Table 1
| Farbic Type | breaking strength | Elongation at break | Thickness | Width | Adhension | |
| N/mm | % | mm | mm | N/mm | ||
| CFW400 | Warp | >460 | >15 | 2.28 | 800-1600 | ≥8 |
| Weft | >140 | -- | ||||
| CFW500 | Warp | >590 | >15 | 2.53 | 800-1600 | ≥8 |
| Weft | >180 | -- | ||||
| CFW630 | Warp | >685 | >15 | 2.7 | 800-1600 | ≥8 |
| Weft | >200 | -- | ||||
| CFW800 | Warp | >880 | >15 | 3.1 | 800-1600 | ≥8 |
| Weft | >240 | -- | ||||
| CFW1000 | Warp | >1060 | >15 | 4.2 | 800-1600 | ≥8 |
Conveyor belt joint way

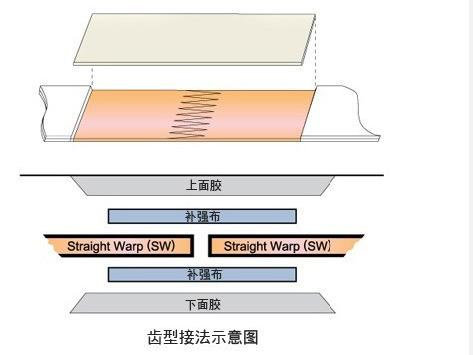

Single ply:finger joint melthod
Double ply:over lap joint method
