Product Description
Sidewall conveyor belts
Advantages:
• Higher hoisting height
• Large conveying capacity
• Small area
• Large conveying
• Increase the transmission angle
• Low investment
• Low elongation
• Excellent ply adhesion
• High tensile strength
• Fatigue and wear resistance
• Good impact resistance
• Full resistance to mildew, moisture and rotting
• High longitudinal and transverse breaking strength
Application areas
• Mining
• Iron and steel industry
• Foundries
• Port and handling
• Coal and biomass power plants
• Recycling industry
• Sand and gravel industry
• Stone quarries
Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance, it is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space and requirement, no transfer point, low maintenance and big capacity.

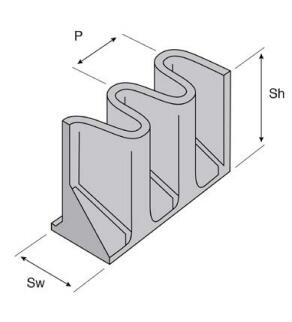

| model | type | height (Sh) | sidewall-foot | pitch (P) | weight (kg/m) | ||
| width (Sw) | |||||||
| 40 | 30 | 25 | 0,58 | |||
| standard | 60 | 50 | 40 | 1.55 | |||
| 80 | 1.82 | ||||||
| 100 | 2.2 | ||||||
| 120 | 2.65 | ||||||
| textile reinforced | 120 | 75 | 63.2 | 3.2 | |||
| 160 | 4.76 | ||||||
| 200 | 6.45 | ||||||
| 240 | 7.5 | ||||||
| 250 | 6.37 | ||||||
| 280 | 8.9 | ||||||
| 300 | 9.33 | ||||||
| HD | 300 | 100 | 83 | 12.1 | |||
| 400 | 18.72 | ||||||
| 500 | 16.8 | ||||||
